Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCD50
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 8000-10000 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
5 Ton Diesel Forklift Standard Type |
Load Capacity: |
5000 Kg |
Lift Height: |
3m Mast |
Fork Size: |
1220X150X55MM |
Service Weight: |
6700 Kg |
Cabin: |
Closed Cabin With Heater |
Engine: |
Chinese Xinchai 4D35 Diesel Engine |
Power: |
60 Kw |
Product Name: |
5 Ton Diesel Forklift Standard Type |
Load Capacity: |
5000 Kg |
Lift Height: |
3m Mast |
Fork Size: |
1220X150X55MM |
Service Weight: |
6700 Kg |
Cabin: |
Closed Cabin With Heater |
Engine: |
Chinese Xinchai 4D35 Diesel Engine |
Power: |
60 Kw |

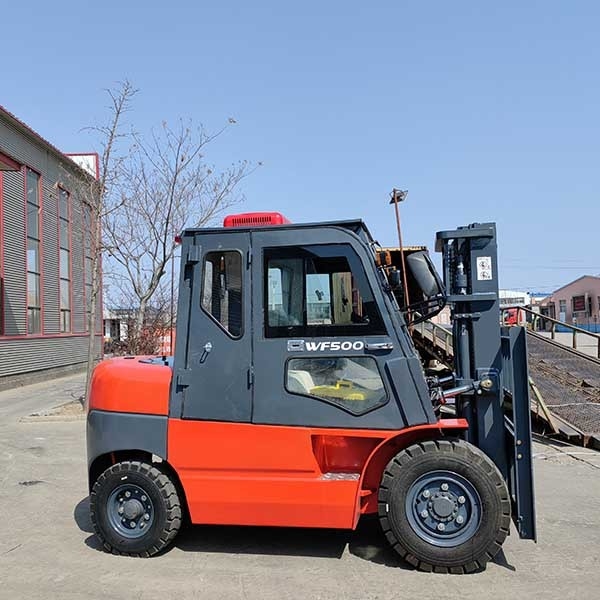

Duplex mast new CPCD50 5 ton diesel forklift Chinese diesel engine cabin heater
Main information:
Product name: 5 Ton diesel powered forklift standard type
Engine: Xinchai 4D35 diesel engine,60 kw
Transmission: Automatic
Mast type: Duplex mast 3.0m lifting height
Tires: pneumatic
Fork: 1220mm
Attachments: cabin and heater
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Wide-angle Rear-View Mirror
Provides more comprehensive rear viewfor enhanced safety.
New design of key parts
The optimal design of key parts like frame, mast, overhead guard and steering axle improve the whole truck's safety and reliability.
Gravity&capacity improved
The repositioning of whole truck's gravity center improve load.ing capacity, stability and safety.
Fuel filling improved
Automobile type oil filling cap and optimal oil filling channel structure and process ensure whole truck's safety.
New-type Rear Axle
New rear axle design increases turning angle to 78 and reduces turning radius.
Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.
| Specification | CPCD50 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 5000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 3000 |
| 5 | Full free lift height | mm | 100 |
| 6 | Fork dimension | mm | 1220×150×50 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 3050 |
| 9 | Groud clearance | mm | 140 |
| 10 | Overhead guard height | mm | 2290 |
| 11 | Front overhang | mm | 570 |
| 12 | Max travel speed | km/h | 25 |
| 13 | Max lift speed | mm/s | 430 |
| 14 | Max.traction power | KN | 23 |
| 15 | Max. gradeability | % | 18 |
| 16 | Total length with fork | mm | 4520 |
| 17 | Total length without fork | mm | 3300 |
| 18 | Total width | mm | 1480 |
| 19 | Mast extended height | mm | 4300 |
| 20 | Mast lowered height | mm | 2190 |
| 21 | Tyres Front | 300-15-20PR | |
| 22 | Type Rear | 700-12-12PR | |
| 23 | Wheelbase | mm | 2200 |
| 24 | Tread | mm | 1180/1190 |
| 25 | Service weight | Kg | 7000 |
| 26 | Battery | V/Ah | (12/80)x2 |
| 27 | Engine model | XINCHAI 4D35 | |
| 28 | Engine power | kw/r.p.m | 60 |
| 29 | Transmission | Automatic | |
| 30 | Work press | Mpa | 18.5 |
