Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCD50
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
5.0Ton Diesel Lift Truck |
Load Capacity: |
5000kg |
Lift Height: |
Duplex 3m Container Mast |
Fork Size: |
1670X125X40MM |
Service Weight: |
5650 Kg |
Engine: |
ISUZU 4JG2 Engine |
Cabin: |
Open Cabin Or Half Closed Cabin |
Product Name: |
5.0Ton Diesel Lift Truck |
Load Capacity: |
5000kg |
Lift Height: |
Duplex 3m Container Mast |
Fork Size: |
1670X125X40MM |
Service Weight: |
5650 Kg |
Engine: |
ISUZU 4JG2 Engine |
Cabin: |
Open Cabin Or Half Closed Cabin |

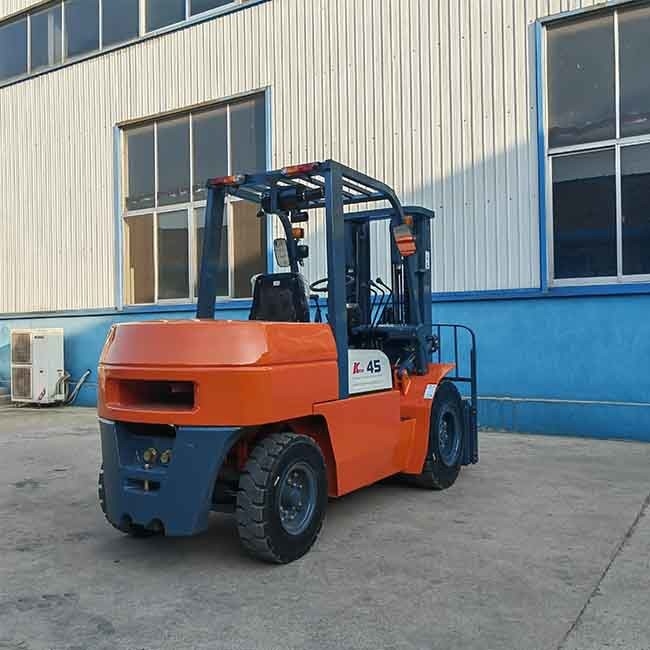

5000KG diesel forklift truck container mast sideshift ISUZU engine
Main information:
Product name: 5Ton diesel I.C. forklift
Engine: ISUZU 4JG2 Japanese engine
Transmission: Automatic or mechanical
Mast type: Triplex mast 4.5m lifting height
Tires: Pneumatic
Fork: 1520mm
Attachments: Closed cabin with heater or air conditioner
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
| Specification | CPCD50 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 5000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 4.5 |
| 5 | Full free lift height | mm | 150 |
| 6 | Fork dimension | mm | 1370×140×40 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 2840 |
| 9 | Groud clearance | mm | 125 |
| 10 | Overhead guard height | mm | 2140 |
| 11 | Front overhang | mm | 490 |
| 12 | Max travel speed | km/h | 20 |
| 13 | Max lift speed | mm/s | 555 |
| 14 | Max.traction power | KN | 15 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 4270 |
| 17 | Total length without fork | mm | 3050 |
| 18 | Total width | mm | 1450 |
| 19 | Mast extended height | mm | 5720 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 300-15 | |
| 22 | Type Rear | 7.00-12 | |
| 23 | Wheelbase | mm | 1600 |
| 24 | Tread | mm | 970/970 |
| 25 | Service weight | Kg | 560 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | ISUZU 4JG2 Ja[anese diesel engine | |
| 28 | Engine power | kw/r.p.m | 42.0 kw |
| 29 | Transmission | Mechanical | |
| 30 | Work press | Mpa | 18.5 |
