Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: FD35
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
3.5 Ton Forklift Diesel G Series |
Engine: |
MITSUBISHI S4S Diesel Engine |
Lift Height: |
3000mm |
Mast Type: |
Duplex Standard |
Fork Size: |
1220mm |
Service Weight: |
4630KG |
Product Name: |
3.5 Ton Forklift Diesel G Series |
Engine: |
MITSUBISHI S4S Diesel Engine |
Lift Height: |
3000mm |
Mast Type: |
Duplex Standard |
Fork Size: |
1220mm |
Service Weight: |
4630KG |

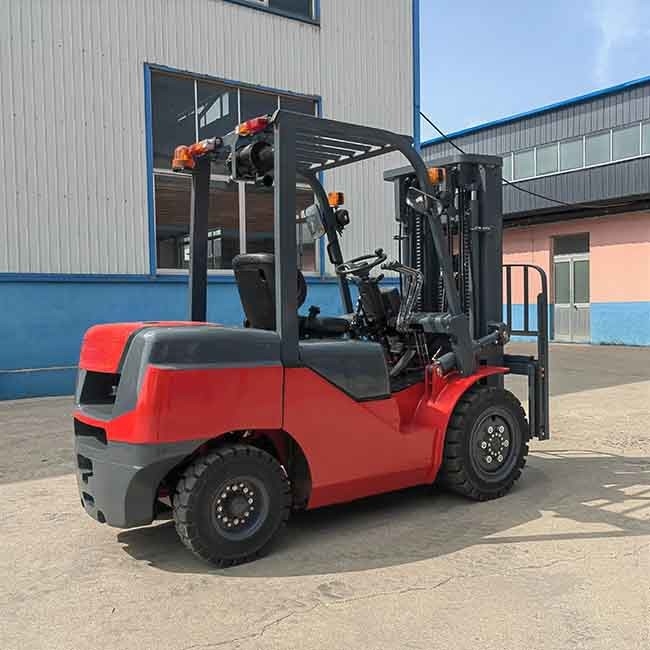

G Series 3500kg FD35 3.5 T Diesel Powered Forklift Truck Japanese Engine
Main information:
Chinese MITSUBISHI S4S diesel engine
Transmission: Automatic
Mast type: 2 stage 3000mm mast, FFL type
Tires:Solid tires
Fork: 1220mm with long shoes
Attachments: side shifter
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Full Hydraulic Steering System
Offer lighter, more flexible steering, with reduced turning radius and handles driving large vehicle like a small vehicle.
Vibration reduced
Cushion connection and wholly suspension driver's cab absorb whole truck's vibration effectively.
Noise reduced
Noise around ear is reduced through down the tilting cylinder under the floorboard and using fully closed patch type driver's cab.Lower damping device inside the lifting system reduces mast shock and vibration and avoiding crash noise caused by goods falling to the ground.
| Specification | CPC30 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 3000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 3000mm |
| 5 | Full free lift height | mm | 1500 |
| 6 | Fork dimension | mm | 1220mmX125X45mm with shoes |
| 7 | Mast tilting angle | Deg. | 6/6 |
| 8 | Min.turning radius | mm | 2400 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2165 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 19 |
| 13 | Max lift speed | mm/s | 480 |
| 14 | Max.traction power | KN | 13.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 3820 |
| 17 | Total length without fork | mm | 2750 |
| 18 | Total width | mm | 1225 |
| 19 | Mast extended height | mm | 5720 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 28x9-15-12PR | |
| 22 | Type Rear | 6.50-10-10PR | |
| 23 | Wheelbase | mm | 1700 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 4865 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | MITSUBISHI S4S diesel engine | |
| 28 | Engine power | kw/r.p.m | 35.4kw |
| 29 | Transmission | Automatic | |
| 30 | Work press | Mpa | 18.5 |
