Side Shifter CPCD30 3.0Ton Diesel Lift Truck Hydraulic Transmission Counterbalance

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: CPC30

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 6000-7500 usd

Packaging Details: Plastic bag

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

3.0Ton Diesel Lift Truck

,

CPCD30 Diesel Lift Truck

,

Hydraulic Transmission Counterbalance

Product Name:
3.0Ton Diesel Forklift G Series
Engine:
Yanmar 4tne98 Diesel Engine
Lift Height:
5000mm Wide View Mast
Mast Type:
42 Kw
Fork Size:
1820x125x45mm
Service Weight:
4360KG
Product Name:
3.0Ton Diesel Forklift G Series
Engine:
Yanmar 4tne98 Diesel Engine
Lift Height:
5000mm Wide View Mast
Mast Type:
42 Kw
Fork Size:
1820x125x45mm
Service Weight:
4360KG

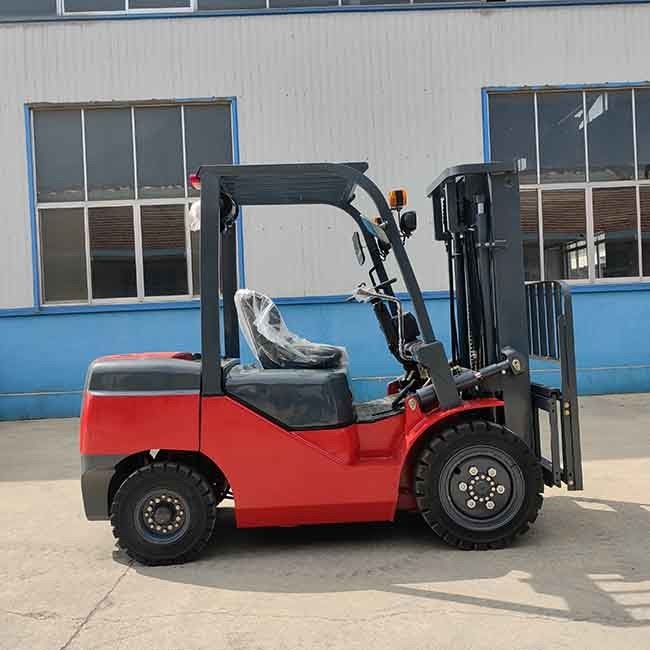

Side Shifter CPCD30 3.0Ton Diesel Lift Truck Hydraulic Transmission Counterbalance

3000kg CPCD30 3.0Ton diesel lift truck hydraulic transmission side shifter



Main information:

Engine: YANMAR 4TNE98 diesel engine

Transmission: Automatic

Mast type: 3 stage mast 5m lifting height

Tires:pneumatic

Fork: 1070mm

Attachments: side shifter



The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.



Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.



Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.



Full Hydraulic Steering System

Offer lighter, more flexible steering, with reduced turning radius and handles driving large vehicle like a small vehicle.



Steer Axle

Oscillating steer axle allows either wheel to step over obstacles keeping the machine and load level. Flirtation drive& steer tires provide excellent traction and stability.The steering angle is from 54° to 78'with very small turning radius.



Clear, Concise & Modern Design

Yeawey forklift design has adopted the streamline design of the Maximal A Series forklifts.The appearance is clear and concise with a very modern forklift design.



Specification CPC30
1 Fuel model   Diesel
2 Load capacity kg 3000
3 Load center mm 500
4 Lift height mm 5500
5 Full free lift height mm 1800
6 Fork dimension mm 1070mmX125X45
7 Mast tilting angle Deg. 6/12
8 Min.turning radius mm 2400
9 Groud clearance mm 135
10 Overhead guard height mm 2165
11 Front overhang mm 495
12 Max travel speed km/h 19
13 Max lift speed mm/s 480
14 Max.traction power KN 13.5
15 Max. gradeability % 20
16 Total length with fork mm 3820
17 Total length without fork mm 2750
18 Total width mm 1225
19 Mast extended height mm 4265
20 Mast lowered height mm 2060
21 Tyres Front   28x9-15-12PR
22 Type Rear   6.50-10-10PR
23 Wheelbase mm 1700
24 Tread mm 1000/970
25 Service weight Kg 4600
26 Battery V/Ah 12/80
27 Engine model   Yanmar 4tne98 diesel engine
28 Engine power kw/r.p.m 42 kw
29 Transmission   Mechanical or automatic
30 Work press Mpa 18.5
