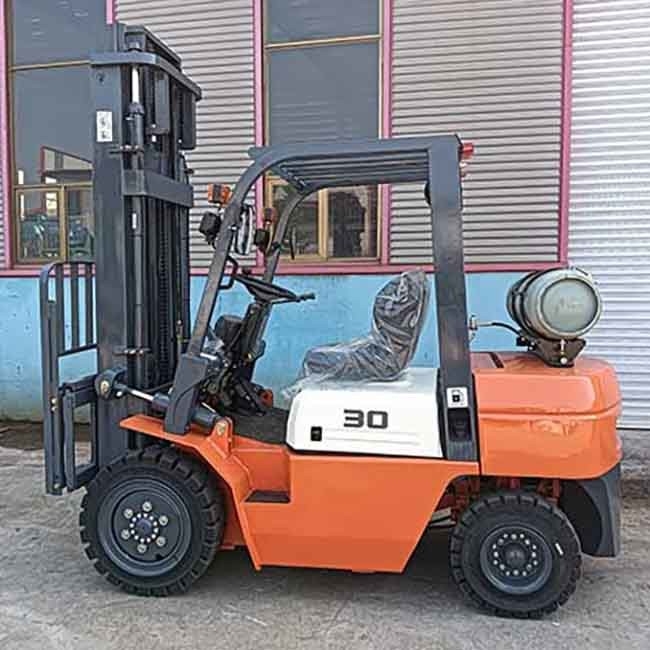

Triplex Mast 4.5m 3T Gasoline Forklift 3000kgs LPG Powered Forklift

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: CPCG30

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 7000-9500 usd

Packaging Details: Plastic bag

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

4.5m 3T Gasoline Forklift

,

Triplex Mast 4.5m Gasoline Forklift

,

3000kgs LPG Powered Forklift

Product Name:
3 Ton Dual Fuel Lift Truck
Fuel Type:
Gasoline And LP Gas
Lift Height:
4.5m Wide View Mast
Mast Type:
3 Stage
Fork Size:
1520X125X45MM
Service Weight:
4580KG
Product Name:
3 Ton Dual Fuel Lift Truck
Fuel Type:
Gasoline And LP Gas
Lift Height:
4.5m Wide View Mast
Mast Type:
3 Stage
Fork Size:
1520X125X45MM
Service Weight:
4580KG
Triplex Mast 4.5m 3T Gasoline Forklift 3000kgs LPG Powered Forklift

Triplex mast 4.5m 3 T gasoline and LPG forklift truck IMPCO converter 3000kgs



Main information:
Engine: Japanese NISSAN gasoline engine
Transmission: Automatic
Mast type: 3 stage mast 4.8m lifting height
Tires: Solid
Fork: 1220mm
Attachments: Side shift

The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.



Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.



Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.



Great heat dissipation

The hot air reflow isolating device, optimal thermal dissipation duct and aluminum plate-fin type radiator improve cooling ability and ensure engine work reliability.



Hydraulic system improved

The constant displacement pump load sensing steering system increases the lifting speed and reduces the hydraulic oil temperature.



Gravity&capacity improved

The repositioning of whole truck's gravity center improve load.ing capacity, stability and safety.



Specification CPCG30
1 Fuel model   Dual fuel type gasolie and LPG
2 Load capacity kg 3000
3 Load center mm 500
4 Lift height mm 4500
5 Full free lift height mm 1500
6 Fork dimension mm 1520×125×45
7 Mast tilting angle Deg. 6/12
8 Min.turning radius mm 2400
9 Groud clearance mm 135
10 Overhead guard height mm 2165
11 Front overhang mm 495
12 Max travel speed km/h 19
13 Max lift speed mm/s 480
14 Max.traction power KN 13.5
15 Max. gradeability % 20
16 Total length with fork mm 3820
17 Total length without fork mm 2750
18 Total width mm 1225
19 Mast extended height mm 4265
20 Mast lowered height mm 2060
21 Tyres Front   28x9-15-12PR
22 Type Rear   6.50-10-10PR
23 Wheelbase mm 1700
24 Tread mm 1000/970
25 Service weight Kg 4350
26 Battery V/Ah 12/80
27 Engine model   Japanese NISSAN gasoline engine
28 Engine power kw/r.p.m 37
29 Transmission   Mechanical or Automatic
30 Work press Mpa 18.5
