Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCG30
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 7000-9500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
3 Ton Dual Fuel Forklift |
Fuel Type: |
Gasoline&LPG |
Lift Height: |
3m Standard Wide View Mast |
Mast Type: |
2 Stage |
Fork Size: |
1220X125X45MM |
Service Weight: |
4450KG |
Product Name: |
3 Ton Dual Fuel Forklift |
Fuel Type: |
Gasoline&LPG |
Lift Height: |
3m Standard Wide View Mast |
Mast Type: |
2 Stage |
Fork Size: |
1220X125X45MM |
Service Weight: |
4450KG |

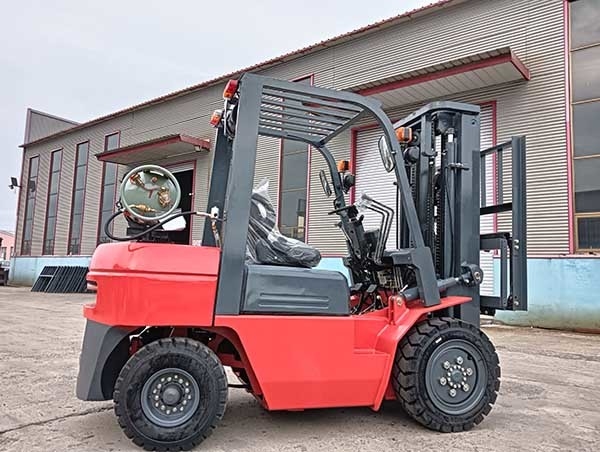

Triplex mast 4.5m 3 TON dual fuel LPG forklift warehouse use IMPCO converter
Main information:
Engine: Chinese Guangqing gasoline engine
Transmission: Automatic
Mast type: 3 stage mast 4.8m lifting height
Tires: Solid or pneumatic
Fork: 1520mm
Attachments: Side shift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Clear, Concise & Modern Design
Yeawey LPG forklift design has adopted the streamline design of the Maximal A Series forklifts.The appearance is clear and concise with a very modern forklift design.
High Quality & Durable tires
Yeawey LPG forklift front tires are a special heavy truck tire with a wide footprint giving it greater stability and lift capacity in rough work environments
Durable mast
The Maximum mast tilt angle F/R reaches to 10°/12°. Wide-view mast provides excellent through-the-mast visibility, improving the work efficiency and allowing safe operation of the forklift.
Long working life
I beam rails and heavy tie bar construction reduce twisting while handling long,lateral loads on rough surface applications. Sealed bearing load rollers and are externally adjustable to compensate for long term wear.
Great heat dissipation
The hot air reflow isolating device, optimal thermal dissipation duct and aluminum plate-fin type radiator improve cooling ability and ensure engine work reliability.
| Specification | CPCG30 | ||
| 1 | Fuel model | Dual fuel type gasolie and LPG | |
| 2 | Load capacity | kg | 3000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 3000 |
| 5 | Full free lift height | mm | 100 |
| 6 | Fork dimension | mm | 1070×125×45 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 2400 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2165 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 19 |
| 13 | Max lift speed | mm/s | 480 |
| 14 | Max.traction power | KN | 13.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 3820 |
| 17 | Total length without fork | mm | 2750 |
| 18 | Total width | mm | 1225 |
| 19 | Mast extended height | mm | 4265 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 28x9-15-12PR | |
| 22 | Type Rear | 6.50-10-10PR | |
| 23 | Wheelbase | mm | 1700 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 4350 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | GQ-4Y gasoline engine | |
| 28 | Engine power | kw/r.p.m | 46 |
| 29 | Transmission | Mechanical or Automatic | |
| 30 | Work press | Mpa | 18.5 |
