Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCZ35
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 7000-9500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
3.5T Diesel Lift Truck Z Series |
Engine: |
ISUZU 4JG2 Diesel Engine |
Lift Height: |
4500mm Mast |
Mast Type: |
3 Stage FFL |
Fork Length: |
1820X125X50MM |
Service Weight: |
4850KG |
Product Name: |
3.5T Diesel Lift Truck Z Series |
Engine: |
ISUZU 4JG2 Diesel Engine |
Lift Height: |
4500mm Mast |
Mast Type: |
3 Stage FFL |
Fork Length: |
1820X125X50MM |
Service Weight: |
4850KG |

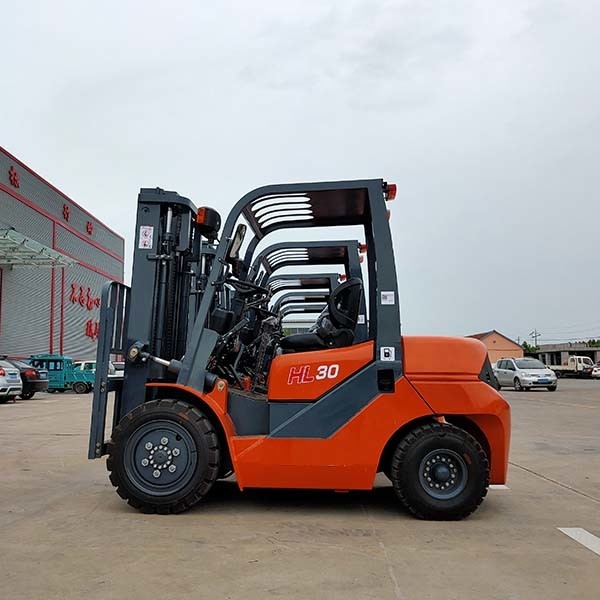

3500kgs FD5 forklift truck diesel powered ISUZU C240 diesel engine red color
Main information:
Product name: 3.5Ton diesel forklift truck Z series
Engine: ISUZU 4JG2 diesl engine
Transmission: Automatic
Mast type: Container mast 4.5m lifting height
Tires: Pneumatic tires
Fork: 1820mm
Attachments: Side shift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
New-type Rear Axle
New rear axle design increases turning angle to 78 and reduces turning radius.
Durable mast
The mast tilt angle F/R reaches to 10°/12°. Wide-view mast provides excellent through-the-mast visibility, improving the work efficiency and allowing safe operation of the forklift.
Gravity&capacity improved
The repositioning of whole truck's gravity center improve load.ing capacity, stability and safety.
| Specification | CPCD35 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 3500 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 34500 |
| 5 | Full free lift height | mm | 1500 |
| 6 | Fork dimension | mm | 1520×125×50 |
| 7 | Mast tilting angle | Deg. | 6/6 |
| 8 | Min.turning radius | mm | 2550 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2165 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 19 |
| 13 | Max lift speed | mm/s | 480 |
| 14 | Max.traction power | KN | 13.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 4065 |
| 17 | Total length without fork | mm | 2995 |
| 18 | Total width | mm | 1225 |
| 19 | Mast extended height | mm | 4265 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 28x9-15-12PR | |
| 22 | Type Rear | 6.50-10-10PR | |
| 23 | Wheelbase | mm | 1700 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 4850 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | ISUZU 4JG2 diesl engine | |
| 28 | Engine power | kw/r.p.m | 35.4 |
| 29 | Transmission | Automatic | |
| 30 | Work press | Mpa | 18.5 |
