Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCD35
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 7000-9500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
3.5T Diesel Forklift Truck H Series |
Engine: |
Xinchai A495BPG Engine |
Lift Height: |
3m |
Mast Type: |
2 Stage Full Free Lift |
Fork Size: |
1220X125X50MM |
Service Weight: |
4850KG |
Product Name: |
3.5T Diesel Forklift Truck H Series |
Engine: |
Xinchai A495BPG Engine |
Lift Height: |
3m |
Mast Type: |
2 Stage Full Free Lift |
Fork Size: |
1220X125X50MM |
Service Weight: |
4850KG |

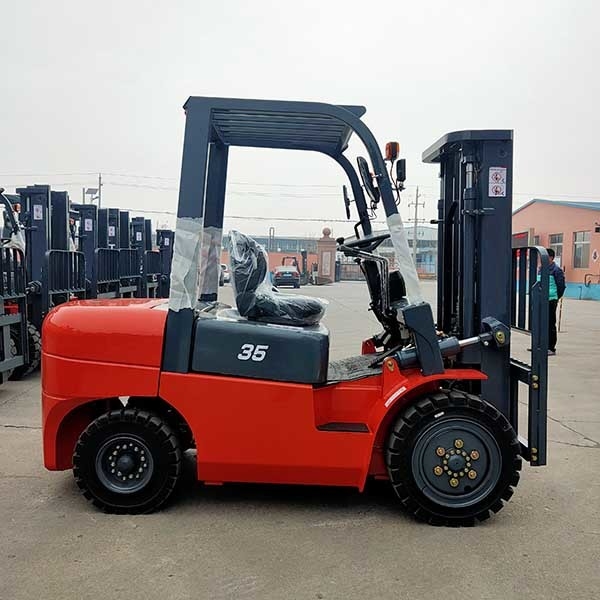

3500kgs 3.5 Ton diesel counterbalance forklift truck Chinese Xichai diesel engine
Main information:
Product name: 3.0Ton diesel forklift truck H series
Engine: Chinese Xinchai A495BPG engine
Transmission: Automatic
Mast type: 2 stage mast 3000mm lifting height
Tires: Solid
Fork: 1220mm
Attachments: Side shift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
New-type Rear Axle
New rear axle design increases turning angle to 78 and reduces turning radius.
F.Clear, Concise & Modern Design
Yeawey forklift design has adopted the streamline design of the Maximal A Series forklifts.The appearance is clear and concise with a very modern forklift design.
M.Hydraulic system improved
The constant displacement pump load sensing steering system increases the lifting speed and reduces the hydraulic oil temperature.
| Specification | CPCD35 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 3000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 3000 |
| 5 | Full free lift height | mm | 100 |
| 6 | Fork dimension | mm | 1220×125×45 |
| 7 | Mast tilting angle | Deg. | 6/6 |
| 8 | Min.turning radius | mm | 2400 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2165 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 19 |
| 13 | Max lift speed | mm/s | 480 |
| 14 | Max.traction power | KN | 13.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 3820 |
| 17 | Total length without fork | mm | 2750 |
| 18 | Total width | mm | 1225 |
| 19 | Mast extended height | mm | 4265 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 28x9-15-12PR | |
| 22 | Type Rear | 6.50-10-10PR | |
| 23 | Wheelbase | mm | 1700 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 4850 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | Xinchai A495BPG engine | |
| 28 | Engine power | kw/r.p.m | 35.4 |
| 29 | Transmission | Automatic | |
| 30 | Work press | Mpa | 18.5 |
