Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCD50
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 7000-9500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
5 T Diesel Forklift |
Engine: |
ISUZU 4JG2 Engine Japanese |
Power: |
46.0 KW |
Lift Height: |
4500mm FFL Mast |
Fork Size: |
1220X150X50MM |
Service Weight: |
5400KG |
Product Name: |
5 T Diesel Forklift |
Engine: |
ISUZU 4JG2 Engine Japanese |
Power: |
46.0 KW |
Lift Height: |
4500mm FFL Mast |
Fork Size: |
1220X150X50MM |
Service Weight: |
5400KG |

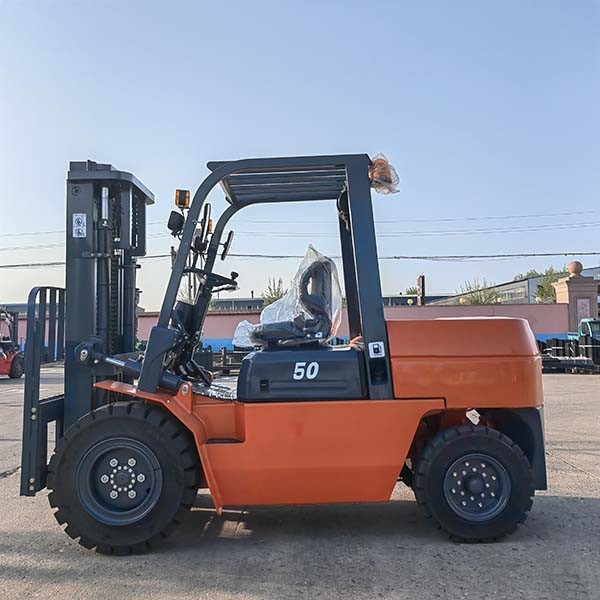

Japanese ISUZU engine 5000kg 5 Ton lift truck hydraulic transmission
Main information:
Product name: 5.0Ton diesel forklift truck
Engine: ISUZU 4JG2 diesel engine
Transmission: Automatic
Mast type: 2 stage mast 3m lifting height
Tires: Solid or pneumatic
Fork: 1220mm
Attachments: Side shift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Operator's view improved
A clear view to the forks and surrounding area is optimized through the Maximal wide view mast.Excellent rearwards visibility is enhanced with the sloping rear counterweight and fenders.The dash and LED monitor panel is mounted low and in line of sight for operator convenience.
Suspension Seat (Optional)
Optional TOYOTA suspension seat with tilting and sliding adjustment absorbs vibrations, improving comfort and safety.
Gravity&capacity improved
The repositioning of whole truck's gravity center improve load.ing capacity, stability and safety.
| Specification | CPCK50 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 5000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 4500 |
| 5 | Full free lift height | mm | 1500 |
| 6 | Fork dimension | mm | 1220×150×50 |
| 7 | Mast tilting angle | Deg. | 6/6 |
| 8 | Min.turning radius | mm | 2680 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2210 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 22 |
| 13 | Max lift speed | mm/s | 330 |
| 14 | Max.traction power | KN | 18.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 4195 |
| 17 | Total length without fork | mm | 2975 |
| 18 | Total width | mm | 1380 |
| 19 | Mast extended height | mm | 4250 |
| 20 | Mast lowered height | mm | 2185 |
| 21 | Tyres Front | 300-15-18PR | |
| 22 | Type Rear | 700-12-10PR | |
| 23 | Wheelbase | mm | 1960 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 5500 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | ISUZU 4JG2 diesel engine | |
| 28 | Engine power | kw/r.p.m | 46 |
| 29 | Transmission | Mechanical or Automatic | |
| 30 | Work press | Mpa | 18.5 |
