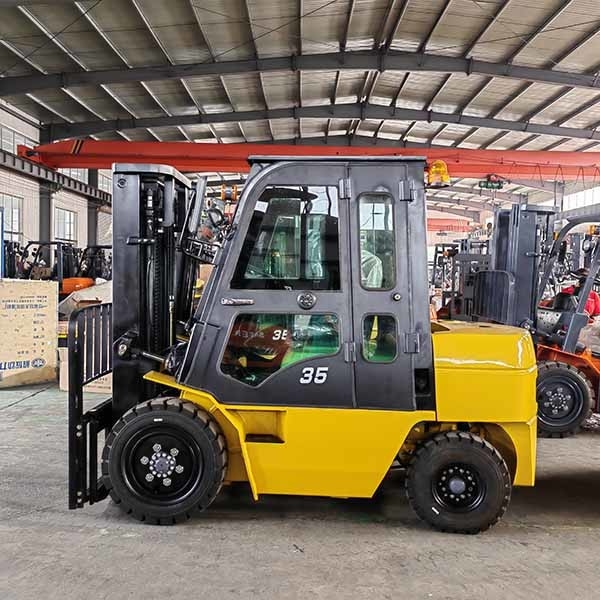

Yellow Balance Counterbalance Hydraulic Diesel Powered Forklift 3.5T With Heater

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: CPCD35

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 6000-7500 usd

Packaging Details: Plastic bag

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

Yellow Balance Counterbalance

,

Hydraulic Diesel Powered Forklift

,

Hydraulic Diesel Balance Counterbalance

Product Name:
3.5T Diesel Forklift Truck
Engine:
Xinchai 490 Diesel Engine
Power:
42 Kw
Lift Height:
4500mm Wide View Mast
Fork Size:
1520X125X50MM
Service Weight:
4900KG
Color:
Yellow
Product Name:
3.5T Diesel Forklift Truck
Engine:
Xinchai 490 Diesel Engine
Power:
42 Kw
Lift Height:
4500mm Wide View Mast
Fork Size:
1520X125X50MM
Service Weight:
4900KG
Color:
Yellow
Yellow Balance Counterbalance Hydraulic Diesel Powered Forklift 3.5T With Heater

New hydraulic 3.5T diesel powered forklift truck with cabin and heater



Main information:

Product name: 3.5Ton diesel counter balance forklift

Engine: XINCHAI C490BPG

Transmission: Mechanical

Mast type: 3 stage mast 4.5m lifting height

Tires: pneumatic

Fork: 1220mm

Attachments: according to customer's requirements.





The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.



Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.



Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.



Suspension Seat (Optional)

Optional TOYOTA suspension seat with tilting and sliding adjustment absorbs vibrations, improving comfort and safety.



Fuel filling improved

Automobile type oil filling cap and optimal oil filling channel structure and process ensure whole truck's safety.



Noise reduced

Noise around ear is reduced through down the tilting cylinder under the floorboard and using fully closed patch type driver's cab.Lower damping device inside the lifting system reduces mast shock and vibration and avoiding crash noise caused by goods falling to the ground.



Specification CPCD35
1 Fuel model   Diesel
2 Load capacity kg 3500
3 Load center mm 500
4 Lift height mm 4500
5 Full free lift height mm 1500
6 Fork dimension mm 1520×125×50
7 Mast tilting angle Deg. 6/12
8 Min.turning radius mm 2550
9 Groud clearance mm 135
10 Overhead guard height mm 2165
11 Front overhang mm 495
12 Max travel speed km/h 19
13 Max lift speed mm/s 480
14 Max.traction power KN 13.5
15 Max. gradeability % 20
16 Total length with fork mm 4065
17 Total length without fork mm 2995
18 Total width mm 1225
19 Mast extended height mm 4265
20 Mast lowered height mm 2060
21 Tyres Front   28x9-15-12PR
22 Type Rear   6.50-10-10PR
23 Wheelbase mm 1700
24 Tread mm 1000/970
25 Service weight Kg

4900

26 Battery V/Ah 12/80
27 Engine model   XINCHAI C490BPG
28 Engine power kw/r.p.m 40
29 Transmission   Automatic
30 Work press Mpa 18.5
