Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCD30
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6000-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
3 T Lift Truck |
Engine: |
Chinese Xinchai C490BPG |
Engine Power: |
40 Kw |
Lift Height: |
5000mm Full Free Lift Mast |
Fork Size: |
1370X125X45MM |
Service Weight: |
4958kg |
Product Name: |
3 T Lift Truck |
Engine: |
Chinese Xinchai C490BPG |
Engine Power: |
40 Kw |
Lift Height: |
5000mm Full Free Lift Mast |
Fork Size: |
1370X125X45MM |
Service Weight: |
4958kg |

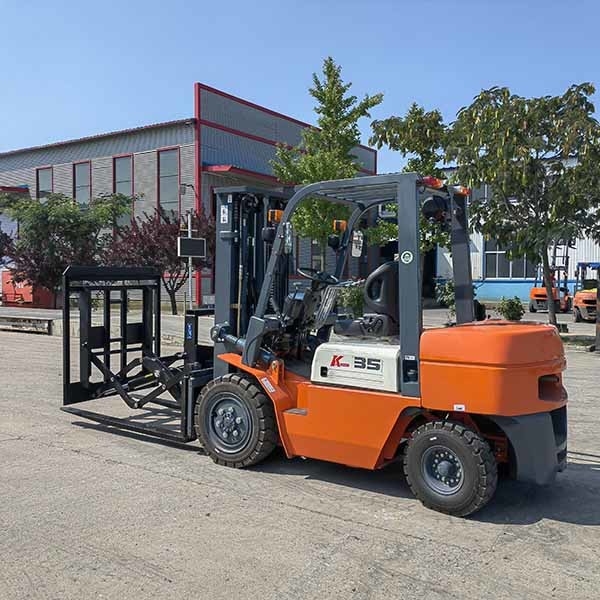

3000kg 3.0Ton diesel forklift truck triplex mast with pull and push attachment
Main information:
Product name: 3.0Ton diesel counter balance forklift
Engine: Xinchai C490BPG
Transmission: Automatic
Mast type: 3 stage mast 5m lifting height
Tires: Solid
Fork: 1220mm
Attachments: Pull and push attachments
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
unit and using suspension type inching.
The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard's front leg.
Workspace increased
Space around foot is effectively increased through up steering unit and using suspension type inching.
The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard's front leg.
High Quality & Durable tires
Yeawey forklift front tires are a special heavy truck tire with a wide footprint giving it greater stability and lift capacity in rough work environments.
Suspension Seat (Optional)
Optional TOYOTA suspension seat with tilting and sliding adjustment absorbs vibrations, improving comfort and safety.
| Specification | CPC30 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 3000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 500 |
| 5 | Full free lift height | mm | 1500 |
| 6 | Fork dimension | mm | 1370×125×45 |
| 7 | Mast tilting angle | Deg. | 6/6 |
| 8 | Min.turning radius | mm | 2400 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2165 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 19 |
| 13 | Max lift speed | mm/s | 480 |
| 14 | Max.traction power | KN | 13.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 3820 |
| 17 | Total length without fork | mm | 2750 |
| 18 | Total width | mm | 1225 |
| 19 | Mast extended height | mm | 5950 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 28x9-15-12PR | |
| 22 | Type Rear | 6.50-10-10PR | |
| 23 | Wheelbase | mm | 1700 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 4500 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | Xinchai C490BPG | |
| 28 | Engine power | kw/r.p.m | 40 KW |
| 29 | Transmission | Mechanical | |
| 30 | Work press | Mpa | 18.5 |
