Duplex 4m Diesel Powered Forklift ISUZU C240 Small Warehouse Forklift 3000kgs

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: CPCD30

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 7000-9500 usd

Packaging Details: Plastic bag

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

Duplex 4m Diesel Powered Forklift

,

Small Warehouse Forklift 3000kgs

,

C240 Small Warehouse Forklift

Product Name:
3.0T Diesel Forklift Z Series
Engine:
ISUZU C240 Japan Engine
Lift Height:
4000mm Mast
Mast Type:
2 Stage Standard Model
Fork Size:
1220X125X45MM
Service Weight:
4350KG
Product Name:
3.0T Diesel Forklift Z Series
Engine:
ISUZU C240 Japan Engine
Lift Height:
4000mm Mast
Mast Type:
2 Stage Standard Model
Fork Size:
1220X125X45MM
Service Weight:
4350KG

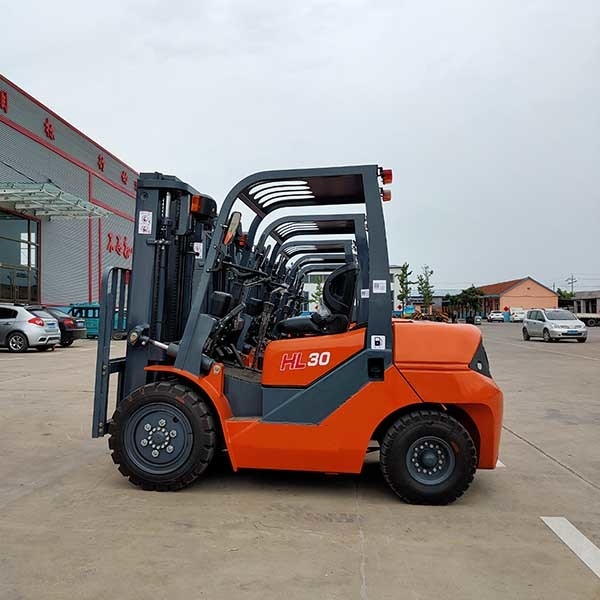

Duplex 4m Diesel Powered Forklift ISUZU C240 Small Warehouse Forklift 3000kgs

Duplex 4m 3 Ton diesel powered forklift ISUZU C240 diesel engine red color



Main information:
Product name: 3.0Ton diesel powered forklift Z series
Engine: ISUZU C240 Japan engine
Transmission: Automatic
Mast type: Duplex mast 4.0m lifting height
Tires: Solid
Fork: 1220mm
Attachments: Side shift


The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.



Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.



Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.



New-type Rear Axle

New rear axle design increases turning angle to 78 and reduces turning radius.



High Quality & Durable tires

Yeawey forklift front tires are a special heavy truck tire with a wide footprint giving it greater stability and lift capacity in rough work environments.



Fuel filling improved

Automobile type oil filling cap and optimal oil filling channel structure and process ensure whole truck's safety.



Specification CPCD30
1 Fuel model   Diesel
2 Load capacity kg 3000
3 Load center mm 500
4 Lift height mm 4000
5 Full free lift height mm 100
6 Fork dimension mm 1220×125×45
7 Mast tilting angle Deg. 6/12
8 Min.turning radius mm 2400
9 Groud clearance mm 135
10 Overhead guard height mm 2165
11 Front overhang mm 495
12 Max travel speed km/h 19
13 Max lift speed mm/s 480
14 Max.traction power KN 13.5
15 Max. gradeability % 20
16 Total length with fork mm 3820
17 Total length without fork mm 2750
18 Total width mm 1225
19 Mast extended height mm 4265
20 Mast lowered height mm 2060
21 Tyres Front   28x9-15-12PR
22 Type Rear   6.50-10-10PR
23 Wheelbase mm 1700
24 Tread mm 1000/970
25 Service weight Kg 4350
26 Battery V/Ah 12/80
27 Engine model   ISUZU C240 diesel engine
28 Engine power kw/r.p.m 35.4
29 Transmission   Automatic
30 Work press Mpa 18.5
