Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO，SGS
Model Number: CPCD30
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 7000-9500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
3.0Ton Diesel Lift Truck T Series |
Engine: |
ISUZU C240 |
Power: |
35.40 KW |
Lift Height: |
4500mm Mast Container Type |
Fork Size: |
1520X125X45MM |
Service Weight: |
4360KG |
Product Name: |
3.0Ton Diesel Lift Truck T Series |
Engine: |
ISUZU C240 |
Power: |
35.40 KW |
Lift Height: |
4500mm Mast Container Type |
Fork Size: |
1520X125X45MM |
Service Weight: |
4360KG |

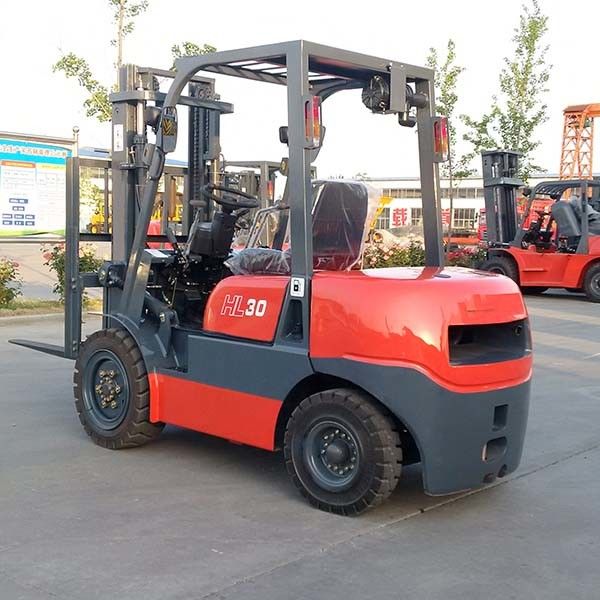

Container mast 4.5m 3T diesel forklift hydraulic transmission ISUZU C240 engine
Main information:
Product name: 3.0Ton diesel powered fork lift truck
Engine: ISUZU C240 diesel engine
Transmission: Automatic
Mast type: Triplex mast 4.5m lifting height
Tires: Solid
Fork: 1220mm
Attachments: Side shift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
High Quality & Durable tires
Yeawey forklift front tires are a special heavy truck tire with a wide footprint giving it greater stability and lift capacity in rough work environments.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Durable mast
The mast tilt angle F/R reaches to 10°/12°. Wide-view mast provides excellent through-the-mast visibility, improving the work efficiency and allowing safe operation of the forklift.
| Specification | CPCD30 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 3000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 4500 |
| 5 | Full free lift height | mm | 1500 |
| 6 | Fork dimension | mm | 1220×125×45 |
| 7 | Mast tilting angle | Deg. | 6/6 |
| 8 | Min.turning radius | mm | 2400 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2165 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 19 |
| 13 | Max lift speed | mm/s | 480 |
| 14 | Max.traction power | KN | 13.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 3820 |
| 17 | Total length without fork | mm | 2750 |
| 18 | Total width | mm | 1225 |
| 19 | Mast extended height | mm | 4265 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 28x9-15-12PR | |
| 22 | Type Rear | 6.50-10-10PR | |
| 23 | Wheelbase | mm | 1700 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 4350 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | ISUZU C240 engine | |
| 28 | Engine power | kw/r.p.m | 40 |
| 29 | Transmission | Automatic | |
| 30 | Work press | Mpa | 18.5 |
