Container Mast 4.5m 2.5T Diesel Powered Forklift Sideshift Solid Tires

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: CPCDT25

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 7000-9500 usd

Packaging Details: Plastic bag

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

2.5T Diesel Powered Forklift

,

Container Mast 4.5m Diesel Forklift

,

Sideshift Diesel Forklift

Product Name:
2.5T Diesel Forklift
Engine:
XINCHAI C490BPG 40KW
Power:
40 Kw
Lift Height:
4500mm Wide View Mast
Fork Size:
1520X122X40MM
Service Weight:
3855KG
Product Name:
2.5T Diesel Forklift
Engine:
XINCHAI C490BPG 40KW
Power:
40 Kw
Lift Height:
4500mm Wide View Mast
Fork Size:
1520X122X40MM
Service Weight:
3855KG

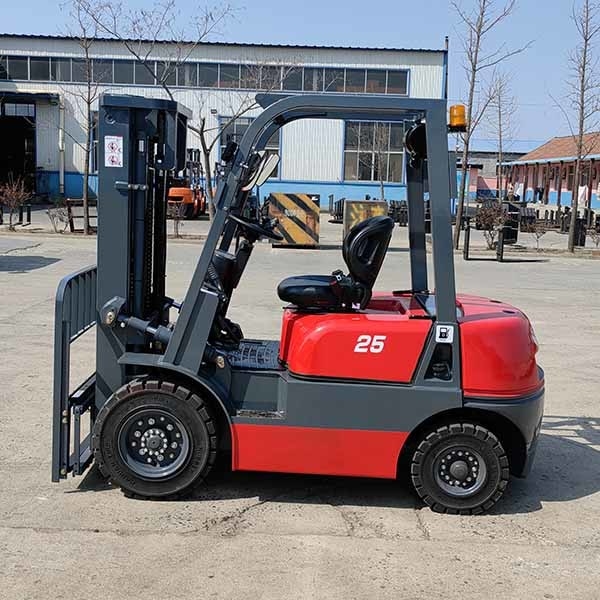

Container Mast 4.5m 2.5T Diesel Powered Forklift Sideshift Solid Tires

Container mast 4.5m 2.5T diesel powered forklift sideshift solid tires



Main information:
Product name: 2.5Ton diesel counter balance forklift
Engine: XINCHAI C490BPG  40KW
Transmission: Automatic
Mast type: 3 stage mast 4.5m lifting height
Tires: Solid or pneumatic
Fork: 1520mm
Attachments: Side shift, long forks


The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.


Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.



Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.



Workspace increased

Space around foot is effectively increased through up steering unit and using suspension type inching.

The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard's front leg.



Suspension Seat (Optional)

Optional TOYOTA suspension seat with tilting and sliding adjustment absorbs vibrations, improving comfort and safety.



Wide-angle Rear-View Mirror

Provides more comprehensive rear viewfor enhanced safety.



Adjustable Steering Wheel

Provide convenience and can customize to the operator's desired position.


Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.

Specification CPCDT25
1 Fuel model   Diesel
2 Load capacity kg 2500
3 Load center mm 500
4 Lift height mm 4500
5 Full free lift height mm 1500
6 Fork dimension mm 1520×122×40
7 Mast tilting angle Deg. 6/6
8 Min.turning radius mm 2240
9 Groud clearance mm 120
10 Overhead guard height mm 2140
11 Front overhang mm 485
12 Max travel speed km/h 19
13 Max lift speed mm/s 550
14 Max.traction power KN 12.3
15 Max. gradeability % 20
16 Total length with fork mm 3610
17 Total length without fork mm 2540
18 Total width mm 1160
19 Mast extended height mm 4220
20 Mast lowered height mm 2060
21 Tyres Front   7.00-12-12PR
22 Type Rear   6.00-9-10PR
23 Wheelbase mm 1600
24 Tread mm 970/970
25 Service weight Kg 3880
26 Battery V/Ah 12/80
27 Engine model   XINCHAI C490BPG
28 Engine power kw/r.p.m 40
29 Transmission   Mechanical or Automatic
30 Work press Mpa 18.5
