Container Mast 3ton Forklift Red Diesel Powered Forklift Chinese Engine

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: CPCD30

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 6000-7500 usd

Packaging Details: Plastic bag

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

Container Mast 3ton Forklift

,

Red Diesel Powered Forklift

,

Chinese Engine 3ton Forklift

Product Name:
3T Forklift
Engine:
Xinchai A495 Diesel Engine
Power:
42kw
Lift Height:
4800mm Container Mast
Fork Size:
1670X125X45MM
Service Weight:
4570KG
Product Name:
3T Forklift
Engine:
Xinchai A495 Diesel Engine
Power:
42kw
Lift Height:
4800mm Container Mast
Fork Size:
1670X125X45MM
Service Weight:
4570KG

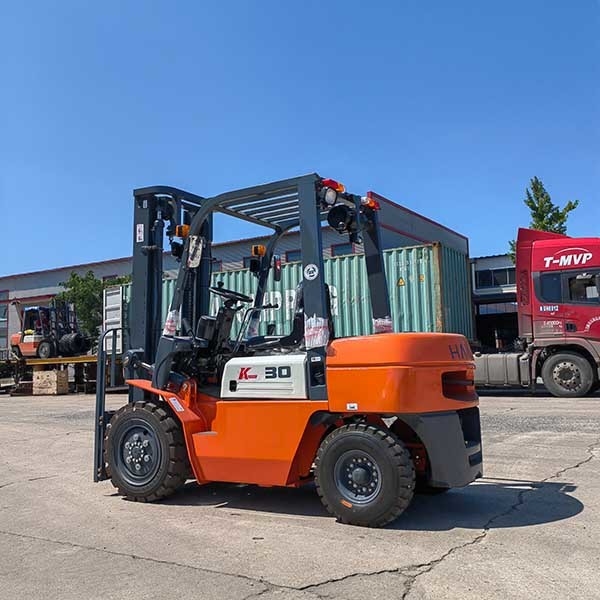

Container Mast 3ton Forklift Red Diesel Powered Forklift Chinese Engine

Container mast 3.0Ton diesel powered forklift Chinese engine red color



Main information:

Product name: 3.0Ton diesel counter balance forklift

Engine: XINCHAI C490BPH

Transmission: Automatic

Mast type: 3 stage mast 4.8m lifting height

Tires: Solid or pneumatic

Fork: 1220mm

Attachments: Side shift





The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.



Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.



Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.



Hydraulic system improved

The constant displacement pump load sensing steering system increases the lifting speed and reduces the hydraulic oil temperature.



Fuel filling improved

Automobile type oil filling cap and optimal oil filling channel structure and process ensure whole truck's safety.



Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.



Specification CPC30
1 Fuel model   Diesel
2 Load capacity kg 3000
3 Load center mm 500
4 Lift height mm 4800
5 Full free lift height mm 1500
6 Fork dimension mm 1220×125×45
7 Mast tilting angle Deg. 6/12
8 Min.turning radius mm 2400
9 Groud clearance mm 135
10 Overhead guard height mm 2165
11 Front overhang mm 495
12 Max travel speed km/h 19
13 Max lift speed mm/s 480
14 Max.traction power KN 13.5
15 Max. gradeability % 20
16 Total length with fork mm 3820
17 Total length without fork mm 2750
18 Total width mm 1225
19 Mast extended height mm 4265
20 Mast lowered height mm 2060
21 Tyres Front   28x9-15-12PR
22 Type Rear   6.50-10-10PR
23 Wheelbase mm 1700
24 Tread mm 1000/970
25 Service weight Kg 4350
26 Battery V/Ah 12/80
27 Engine model   XINCHAI C490BPG
28 Engine power kw/r.p.m 40
29 Transmission   Mechanical
30 Work press Mpa 18.5
