Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO
Model Number: CPCD15
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6500-7500 usd
Packaging Details: Plastic bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 units per month
Product Name: |
1.5T Diesel Forklift |
Lift Height: |
4500mm Container Mast |
Fork Dimension: |
1070X100X35MM |
Service Weight: |
2750KG |
Engine: |
Xinchai NC485 Diesel Engine |
Power: |
32 Kw |
Product Name: |
1.5T Diesel Forklift |
Lift Height: |
4500mm Container Mast |
Fork Dimension: |
1070X100X35MM |
Service Weight: |
2750KG |
Engine: |
Xinchai NC485 Diesel Engine |
Power: |
32 Kw |

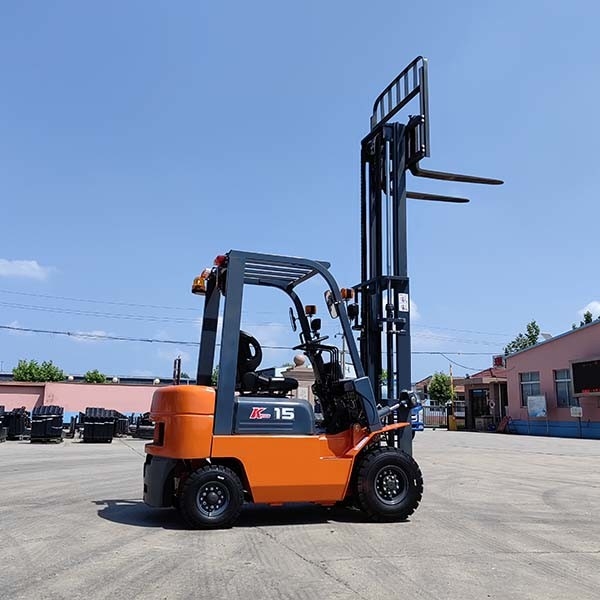

Full free lift mast 1.5T diesel powered forklift cabin air conditioner
Main information:
Product name: 2.0Ton diesel counter balance forklift
Engine: Chinese Xinchai C490BPG diesel engine
Transmission: Mechanical
Mast type: wide vide 3 stage mast 4.5m lifting height
Tires: Pneumatic
Fork: 1220mm
Attachments: Sideshift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Long working life
I beam rails and heavy tie bar construction reduce twisting while handling long,lateral loads on rough surface applications. Sealed bearing load rollers and are externally adjustable to compensate for long term wear.
Suspension Seat (Optional)
Optional TOYOTA suspension seat with tilting and sliding adjustment absorbs vibrations, improving comfort and safety.
Wide-angle Rear-View Mirror
Provides more comprehensive rear viewfor enhanced safety.
| Specification | CPC15 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 1500 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 4500 |
| 5 | Full free lift height | mm | 1500 |
| 6 | Fork dimension | mm | 920×100×35 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 1955 |
| 9 | Groud clearance | mm | 110 |
| 10 | Overhead guard height | mm | 2040 |
| 11 | Front overhang | mm | 425 |
| 12 | Max travel speed | km/h | 13.5 |
| 13 | Max lift speed | mm/s | 590 |
| 14 | Max.traction power | KN | 12.3 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 3175 |
| 17 | Total length without fork | mm | 2255 |
| 18 | Total width | mm | 1070 |
| 19 | Mast extended height | mm | 4030 |
| 20 | Mast lowered height | mm | 1995 |
| 21 | Tyres Front | 6.50-10-10PR | |
| 22 | Type Rear | 5.00-8-8PR | |
| 23 | Wheelbase | mm | 1410 |
| 24 | Tread | mm | 890/920 |
| 25 | Service weight | Kg | 2800 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model |
ISUZU C240 |
|
| 28 | Engine power | kw/r.p.m | 34 |
| 29 | Transmission | Mechanical or Automatic | |
| 30 | Work press | Mpa | 18.5 |
