Product Details
Place of Origin: China
Brand Name: YEAWEY
Certification: CE ISO
Model Number: CPCD30
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: 6500-7500 usd
Packaging Details: Plastic bag
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 200 units per month
Name: |
3T Counter Balance Forklift |
Brakes: |
Hydraulic |
Overall Width: |
1225mm |
Fork Length: |
1070mm |
Seat Type: |
Adjustable |
Power Source: |
Diesel |
Transmission: |
Automatic |
Engine Type: |
In-line, 4-cylinder, Water-cooled |
Tire Type: |
Pneumatic |
Max Lift Height: |
3000mm |
Mast Type: |
2-Stage |
Type: |
Forklift Truck |
Turning Radius: |
2200mm |
Attachments: |
Bale Clamp |
Name: |
3T Counter Balance Forklift |
Brakes: |
Hydraulic |
Overall Width: |
1225mm |
Fork Length: |
1070mm |
Seat Type: |
Adjustable |
Power Source: |
Diesel |
Transmission: |
Automatic |
Engine Type: |
In-line, 4-cylinder, Water-cooled |
Tire Type: |
Pneumatic |
Max Lift Height: |
3000mm |
Mast Type: |
2-Stage |
Type: |
Forklift Truck |
Turning Radius: |
2200mm |
Attachments: |
Bale Clamp |

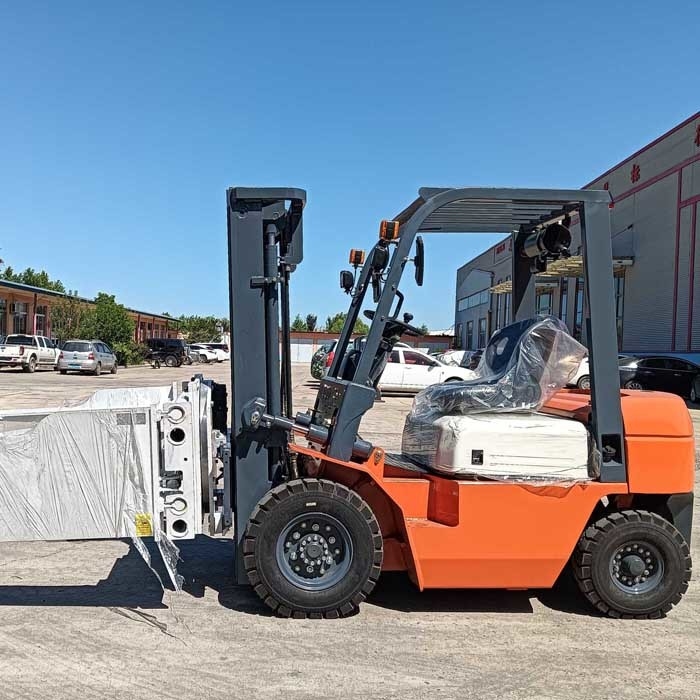

3.0ton/3000kgs 3T counter balance fo 3m/4.5m/5m/6m Lifting Height
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Operator's view improved
A clear view to the forks and surrounding area is optimized through the Maximal wide view mast.Excellent rearwards visibility is enhanced with the sloping rear counterweight and fenders.The dash and LED monitor panel is mounted low and in line of sight for operator convenience.
Durable mast
The mast tilt angle F/R reaches to 10°/12°. Wide-view mast provides excellent through-the-mast visibility, improving the work efficiency and allowing safe operation of the forklift.
New design of key parts
The optimal design of key parts like frame, mast, overhead guard and steering axle improve the whole truck's safety and reliability.
| Specification | CPC30 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 3000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 3000 |
| 5 | Full free lift height | mm | 100 |
| 6 | Fork dimension | mm | 1070×125×45 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 2400 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2165 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 19 |
| 13 | Max lift speed | mm/s | 480 |
| 14 | Max.traction power | KN | 13.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 3820 |
| 17 | Total length without fork | mm | 2750 |
| 18 | Total width | mm | 1225 |
| 19 | Mast extended height | mm | 4265 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 28x9-15-12PR | |
| 22 | Type Rear | 6.50-10-10PR | |
| 23 | Wheelbase | mm | 1700 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 4350 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | XINCHAI C490BPG | |
| 28 | Engine power | kw/r.p.m | 40 |
| 29 | Transmission | Mechanical or Automatic | |
| 30 | Work press | Mpa | 18.5 |
