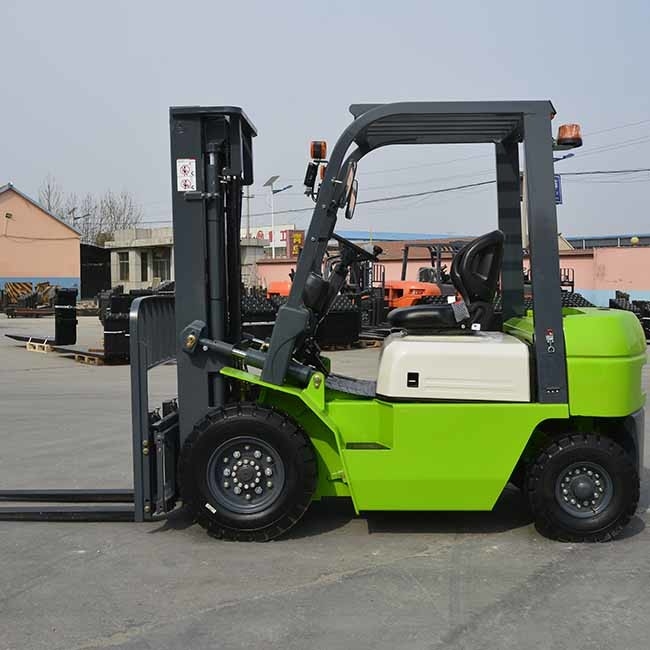

2000kg Lithium Battery Forklift CPD20KD Chinese FANJI Electric Counterbalance Forklift

2000 kgs CPD20KD 2.0 Ton lithium forklift Chinese FANJI controller AC motor

Main information:

Load capacity: 2000kg*500mm

Lead acid battery 80V/205AH

Charger 80V/70A

Chinese FANJI controller

AC lift motor and AC drive motor

Automatic transmission

2 stage 3m mast

Pneumatic tires

Fork 1220mm

HK Series Electric Forklift Truck

With Lithium Power

HK series lithium battery forklifts are high quality products developed on the basis of the advantages of "High performance lithium battery system" and "Domestic and imported advanced controllers". The load capacity range is from 1.5Ton to 5.0Ton.

Following the family design of I.C. forklifts, they are provided with some key parts compatible with them, and optimized mainly on the overall performance, ergonomics, reliability, maintenance, outdoor operation ability and load capacity in a bid to meet customers’ different requirements.

Curtis controller

The trucks are equipped with Curtis controllers.CAN-bus technology makes the diagnostic and trouble shooting easier.The use of proved and certified components helps to ensure the conformity to international safety standards with all the supporting documents available as required by law.

AC maintenance-free drive motor

Adopt maintenance-free and powerful AC drive motor. Compared with traditional DC motors, our AC motors do not need to replace Carbon brushes. Equipped with speed sensor and temperature sensor, greatly improving the AC motor’s reliability.

High performance transmission:

Transmission system uses a horizontal fan-shaped drive axle arranged in parallel with a large transmission ratio. The battery is installed at the bottom of the frame.Traveling motor adopts AC maintenance-free motor.

Quite low vibration design

The hydraulic system uses a low-noise gear pump and full hydraulic power steering. Quiet and comfortable operation. Shock absorbing steer axle to protect the vehicle system and prolong the service life of the forklift.

Light system:

The forklift is equipped with standard LED lamps: head-lamps,front turn lamps, rear combination lamps, warning lamps. Bright light with low power consumption allows you to operate freely at night.


Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.
