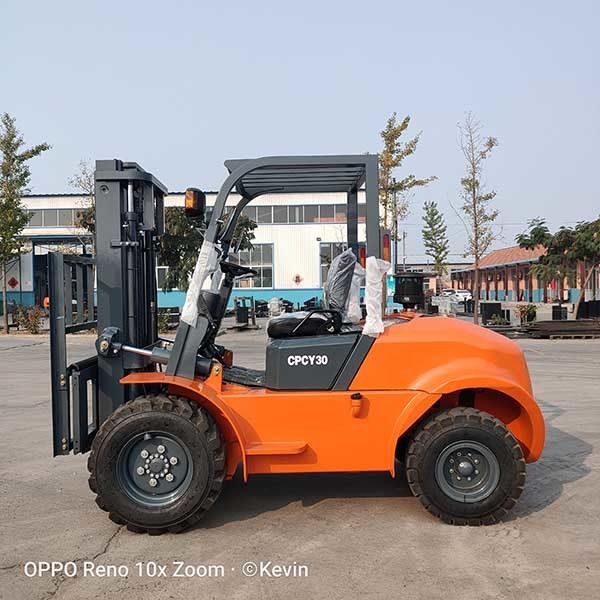

3T Small Rough Terrain Forklift 3000kg Container Mast Outdoor Forklift

Product Details

Place of Origin: China

Brand Name: YEAWEY

Certification: CE ISO,SGS

Model Number: FR2WD30

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: 7000-9500 usd

Packaging Details: Plastic bag

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 units per month

Get Best Price
Highlight:

3T Small Rough Terrain Forklift

,

Small Rough Terrain Forklift 3000kg

,

Container Mast Outdoor Forklift

Product Name:
3 Ton Rough Terrain Forklift
Engine:
Xinchai A498BPG Diesel Engine
Power:
45 Kw
Lift Height:
4800mm Full Free Lift Mast
Mast Type:
3 Stage Mast
Fork Size:
1820X125X45MM
Service Weight:
5260KG
Product Name:
3 Ton Rough Terrain Forklift
Engine:
Xinchai A498BPG Diesel Engine
Power:
45 Kw
Lift Height:
4800mm Full Free Lift Mast
Mast Type:
3 Stage Mast
Fork Size:
1820X125X45MM
Service Weight:
5260KG
3T Small Rough Terrain Forklift 3000kg Container Mast Outdoor Forklift

3000kg 3 T rough terrain forklift truck Chinese engine container mast



Main information:

Two wheel drived

Load capacity: 500mm
Engine: Chinese Xinchai A498BPG diesel engine
Transmission: Automatic
Mast type: 3 stage mast .4.8m lifting height
Tires: Pneumatic
Fork: 1520mm
Attachments: Side shift, full free lift mast


YEAWEY Rough Terrain Forklift is built with an emphasis on performance,reliability and high tech design. Compact size, with rounded body design,allows better forward, side & rear visibility for the operator.

Short wheelbase provides tight turning radius to maneuver in congested or limited space operating areas.

Specifically designed for the construction,mining, forestry lumber & building industry,these forklift trucks have high under clearance,tremendous mobility and stability on rouih terrain with or without load.

Rugged designed one piece frame is robotic welded for maximum rigidity, superior quality and lone term endurance to meet the most demanding operating conditions.



Two-Wheel Drive System

Yeawey rough terrain forklift is a tough, compact forklift with a two-wheel drive system.

The forklift is based on conventional forklift, but its rough terrain performance is excellent.



Transmission with Differential Lock

Power shift transmission with torque converter has two pedal inching, brake control and full reversal allowing faster cycle times.

The differential is specifically designed for rough terrain and features automatic differential lock, providing ultimate traction during inclement weather conditions and rough operating surfaces.



High Ground Clearance

2.5T-3T rough terrain forklift body min. ground clearance is 250mm; 3.5T-4T rough terrain forklift body min. ground clearance is 285mm;High ground clearance offers greater maneuverability and keeps the machine moving in the roughest of applications.



Clear, Concise & Modern Design

Yeawey rough terrain forklift design has adopted the streamline design of the Maximal A Series forklifts.The appearance is clear and concise with a very modern forklift design.



Long working life

I beam rails and heavy tie bar construction reduce twisting while handling long,lateral loads on rough surface applications. Sealed bearing load rollers and are externally adjustable to compensate for long term wear.





Workspace increased

Space around foot is effectively increased through up steering unit and using suspension type inching.

The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard's front leg.





Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.


Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.



Model     FR2WD30
Power     Diesel
Load capacity   Kg 3000
Load center   mm 500
Lift height   mm 3000
Mast tilting angle front/rear Deg 5/15
Front overhang   mm 545
Wheelbase   mm 1850
Tread front/rear   mm 1250/1205
Driving brake     Hydraulic / Foot padel
Parking brake     Mechanical / Hand
Lifting speed(laden) mm/s 440
Lowing speed(laden/unladen) mm/s Loden600,Unloden300
Travel speed(unladen) Km/h 22
Max. Gradeability (Laden) % 16
Engine Model   Chinaese Xincai engine
Manufacture   A495BPG
Battery Volt V 12
Capacity Ah 80
Transmission Type   Hydraulic
Stage   /
Tire Type   Pneumatic
Front   12-16.5-14PR
Rear   27x10-12-12PR
Service weight Kg 4730
Fork Mounting class   B
Dimension L×W×T mm 45x122x1070
Dimensions Length(without fork) mm 2940
Width mm 1550
Mast extended height mm 4350
Mast lowered height mm 2350
Overhead guard height mm 2210
Min. turning radius mm 2910
Groud clearance Mast mm 220
Middle of wheelbase mm 310
