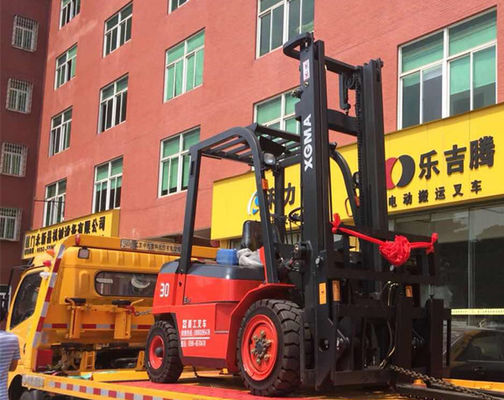

Effective Diesel Powered Forklift , High Reach Forklift 3000kg Loading Capacity

Effective Diesel Powered Forklift , High Reach Forklift 3000kg Loading Capacity

    • Effective Diesel Powered Forklift , High Reach Forklift 3000kg Loading Capacity
    • Effective Diesel Powered Forklift , High Reach Forklift 3000kg Loading Capacity
  • Effective Diesel Powered Forklift , High Reach Forklift 3000kg Loading Capacity

    Product Details:

    Place of Origin: China
    Brand Name: XGMA
    Certification: CE
    Model Number: XGMA-CP(C)D530

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiable
    Packaging Details: container
    Delivery Time: 5~8 work days
    Payment Terms: T/T
    Supply Ability: 100 per month
    Contact Now
    Detailed Product Description
    Loading: 3000Kg Color: Red
    Forklift Power: Diesel Engine Forklift Mast: 2 Stage/3 Stage
    Forklift Type: Counterbalance Forklift Tire: Pneumatic Tire Solid Tire Option
    Deadweight: 4450Kg Forklift Model: CP(C)D

    1070mm Fork Length 3000kg Rated Loading Capacity Forklift



    XGMA Forklift CPD30 Model Specification:



    Character 1.1 Manufacturer   XGMA
    1.2 model   CPD30
    1.3 Product name   XG530-DT5
    1.4 Power size   Diesel
    1.5 Rated Capacity kg 3500
    Dimension 2.1 load center distance mm 500
    2.2 Lifting height mm 3000
    2.3 Free lifting height mm 150
    2.4 Mast tilt α/β 6/12
    2.5 Overall Length mm 3860
    2.6 Overall Width mm 1220
    2.7 Mast without lifting height mm 2160
    2.8 Right Angle stacking min. channel width mm 4100
    2.9 Overhead height mm 2150
    2.11 Fork(L*W*H) mm 1070*125*50
    2.12 Front overhang/Rear overhang mm 480/555
    2.13 Wheel distance mm 1760
    2.14 Min. Turning radium mm 2420
    Specification 3.1 Min.ground clearance mm 140
    3.2 Max.driving speed(Empty load) km/h 20
    3.3 Lifting speed(Full load) mm/s 360
    3.4 Max.traction KN 16
    3.5 Gradeability ° 20
    Tires 4.1 Overall Weight kg 4550
    4.2 Front tire size   28*9-15-14PR
    4.3 Rear tire size   6.50-10-10PR
    4.4 wheel distance(Front/Rear) mm 1000/980
    Driving,transmission gear device 5.1 Engine Model   4JG2PE-01
    5.2 Eninge rated power/rotate speed kw/r.p.m 45/2450
    5.3 Max.torque/rotate speed N.w/r.p.m 184.7/1700
    5.4 Gears (Front/Rear)   1/1
    5.5 Battery(Valtage/capacity) V/Ah 12/80
    5.6 Fuel box capacity L 70
    5.7 Hydraulic oil box capacity L 70



    About XGMA Forklift:



       The engine is XinChai Diesel engine. These forklifts have inlimited power, larger torque, simple to operate and luxurious operation environmend, and safes a lot more fuel



        Full-hydraulic steering system with lateral steering cylinder allows easy and reliable steering

    Hydraulic torque transmission ensures stable driving



        Braking system: A gas-powered oil brake system with shoe brake ensure light and reliable operation

    It can realize regular discharge under temperature between -4℃~60℃. The excellent low-temperature performance makes it more stuitable for cold chain industry.



         Under the normal condition of charging and discharging, after 4000 times of circular opteration, the capacity keeps higher than 80%. The battery’s service life can keep more than 10 years.



          No need of fluid infusion and dust prevention kind of daily manual maintenace

    The XGMA Third Generation Load Sensing Priority Hydraulic System is energy saving and highly efficient. The working efficiency can improve by 13.4%.



         It is equipped with electric smart cooling system to use in continuous working condition. It avoids the moters and controller from strutting down due to the thermal protection after long working hours.



    Effective Diesel Powered Forklift , High Reach Forklift 3000kg Loading Capacity



    FAQ



    1. What's the Certificate do you have?
    XGMA workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate.

    2. Can you customize and design as the clients' requirement?
    XGMA will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.

    3. How long is the warranty of your products?
    All of products are with 1 year / 2000 working hours subject to the first.

    4. What's the payment terms do you accept?
    Normally we accept 30% deposit, 70%balance before delivery.


    5. Delivery date:
    If clients need normal products, we will deliver the products within 15days. If clients need customerized products, the delivery date depend on the requirements.
