|Place of Origin:||China|
|Minimum Order Quantity:||1 unit|
|Delivery Time:||5~8 work days|
|Supply Ability:||100 per month|
|Foklift Engine Type:||Nissan Japanese Engine Optional||Loading:||3000Kg|
|Wheel:||Pneumatic Tire/solid Tire Optional||Forklift Power Type:||Diesel Engine|
|Fork Length:||Optional||Product Name:||Powered Pallet Truck Diesel 3Ton Forklift|
|Forklift Mast:||2 Stage/3 Stage 3~6m Options|
material handling forklift,
warehouse lifting equipment

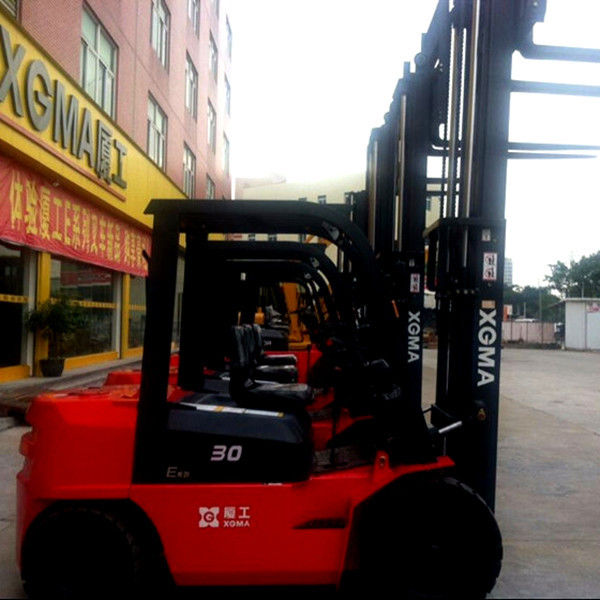

Side Shift Nissan Engine Options 3 Ton Diesel Forklift
3T Forklift Features
Xichai 490 CE certificated engine, 37kw/ 50hp
Xinchai 490 Euro III engine, 36.8kw/ 50hp
Xinchai 498 Euro III engine, 36.8kw/ 50hp
Equipped with Chinese powerful and reliable engines with excellent enviromental performance, Orginal imported Isuzu, Mitsubishi and Cummins engines are optional.
Heavy-duty driving axle
Install heavy-duty axle to ensure safety work at bad working conditions.
Adopt advanced load sense technoloy which offers flow for steering system to save energy, protect environment,
and lower the system heat.
XGMA News 3 Ton Forklift Specification:
|Dimension||2.1||load center distance||mm||500|
|2.3||Free lifting height||mm||145|
|2.7||Mast without lifting height||mm||2100|
|2.8||Right Angle stacking min. channel width||mm||4075|
|2.12||Front overhang/Rear overhang||mm||475/515|
|2.14||Min. Turning radium||mm||2400|
|3.2||Max.driving speed(Empty load)||km/h||20|
|3.3||Lifting speed(Full load)||mm/s||450|
|4.2||Front tire size||28*9-15-14PR|
|4.3||Rear tire size||6.50-10-10PR|
|Driving,transmission gear device||5.1||Engine Model||C490BPG|
|5.2||Eninge rated power/rotate speed||kw/r.p.m||40/2650|
|5.6||Fuel box capacity||L||70|
|5.7||Hydraulic oil box capacity||L||70|
1.What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate.
2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first.
4.What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
If clients need normal products, we will deliver the products within 15days. If clients need customerized products, the delivery date depend on the requirements.
